LOW VOLTAGE BUSWAY

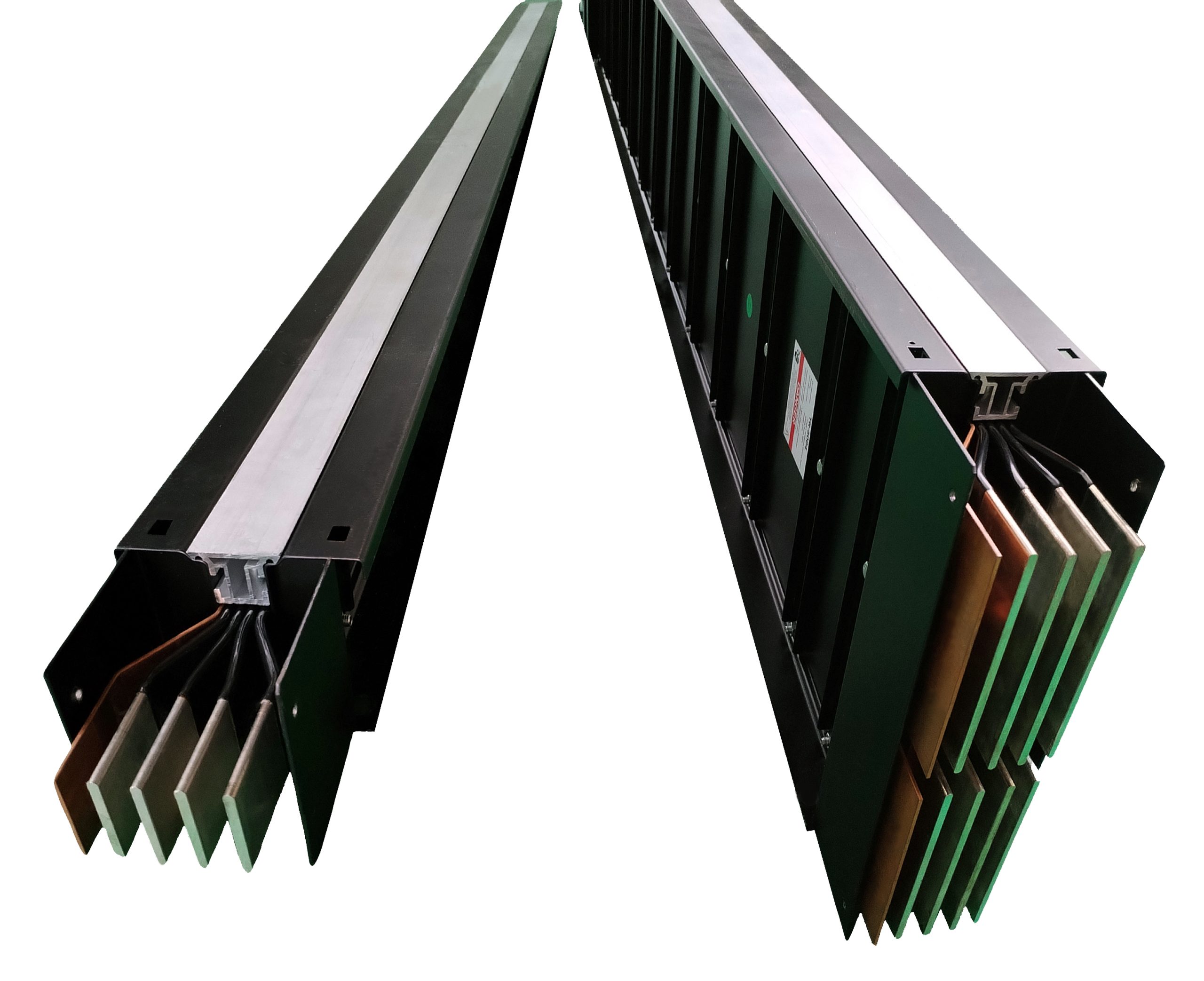

BUSWAY – SANDWICH TYPE
- Rated Voltage : Up to 1000V
- Rated Current : Up to 6300A
- Type : Sandwich & Compact Busway
- Power Application : AC / DC
- Configuration : 3P3W, 3P4W, 3P5W & 3P6W system
- Conductor : Copper & Aluminium
- Frequency : 50Hz / 60Hz
- Service Temperature : Up to 50 Deg C
- Short Circuit Capacity : Up to 150kA
- Ingress of Protection : Up to IP66
- Standards : IEC61439-6 & other equivalent standards

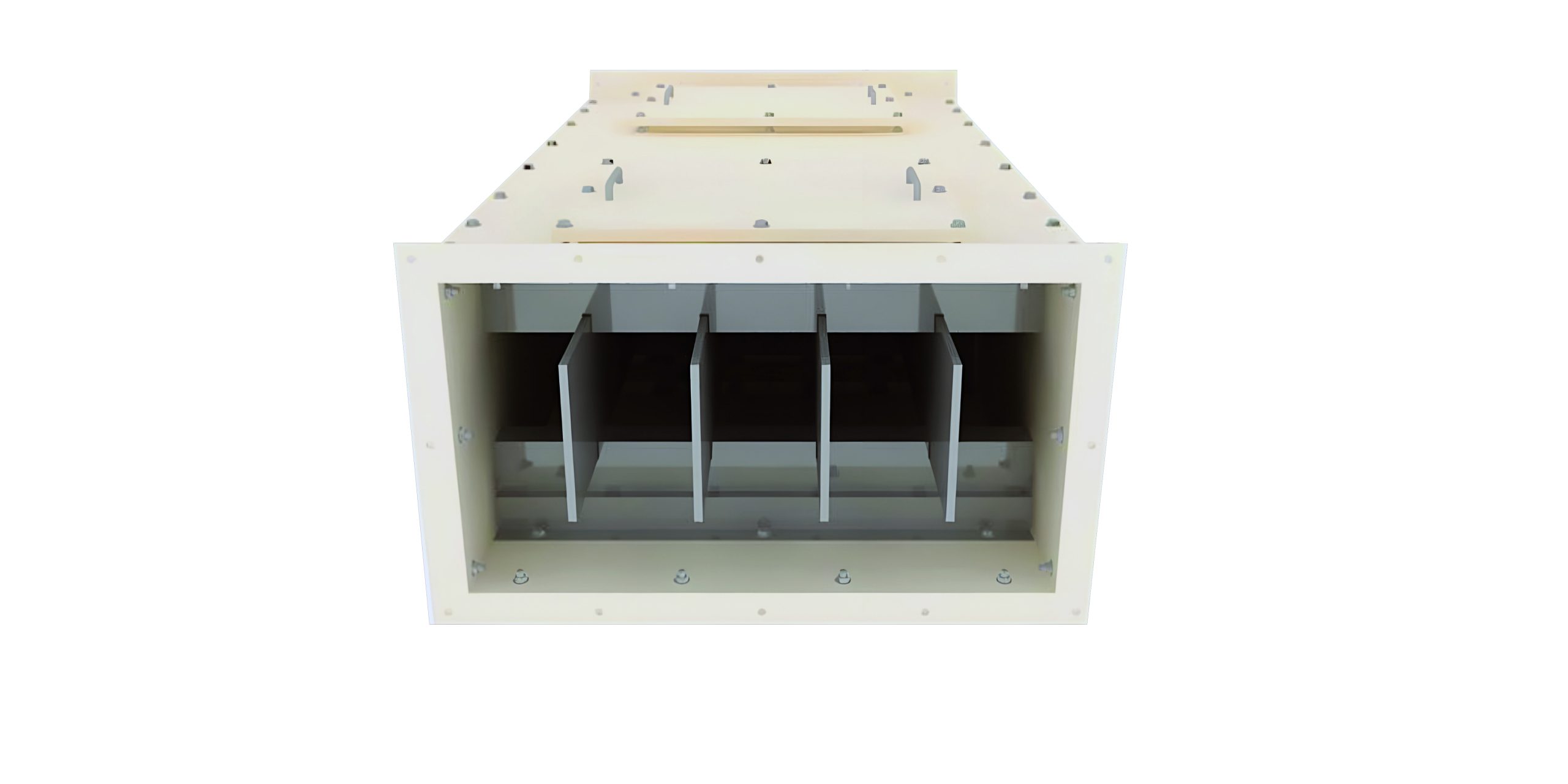

BUSWAY – AIR INSULATED TYPE
- Rated Voltage : Up to 3600V
- Rated Current : Up to 6500A
- Type : Non-Segregated Phase Busway (NSPB)
- Power Application : AC / DC
- Configuration : 1P2W, 3P3W, 3P4W & 3P5W system
- Conductor : Copper with Tin Coating
- Frequency : 50Hz / 60Hz
- Service Temperature : Up to 50 Deg C
- Short Circuit Capacity : Up to 80kA
- Ingress of Protection : Up to IP66
- Standards : IEC61439-6, IEC62271-200 & other equivalent standards
Click here for Product Catalogue
REQUEST FOR QUOTATION
Please fill in the form for any inquiry.
1Step 1
| Type of busway construction | Compact design |
| Standard | IEC61439-6 & other equivalent |
| System Configuration | 1P2W, 1P3W, 3P3W, 3P4W+E, 3P4W(200%N) 3P5W+E (200%N) |
| Ingress of protection (IP) Rating | IP54 to IP66 |
| Rated AC Voltage | Up to 1000V |
| Rated DC Voltage | Up to 1000V |
| Frequency | 50Hz to 60Hz |
| Current Rating | 6300 A |
| Conductor | Copper & Aluminium |
| Service Temperature | Up to 50 deg c (Full load operation without de-rating) |
| Short circuit capacity | Up to 150 kA |
| Plug in type distribution | Up to 400A |
| Tap off type distribution | 500A to 2000A |
